¶ LA2016 USB Logic Analyzer
The Logic Analyzer can be found in a white box on in the Electronics Lab work bench.

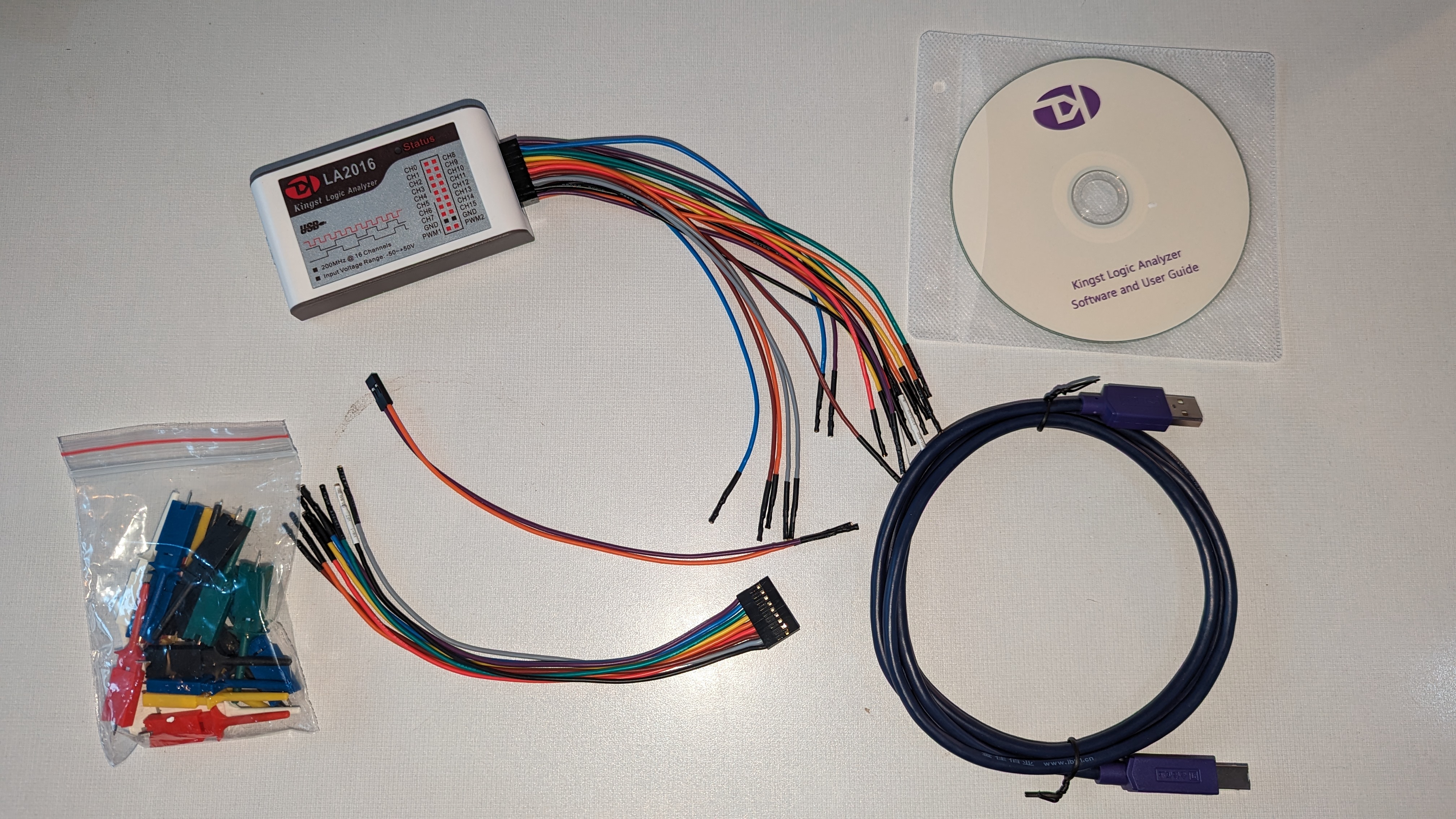

¶ What's in the Box/Spec
- Kingst LA2016 Logic Analyzer
- USB A to B
- 16 Channel and 8 Channel Cables
- PWM Cables
- Misc. Grabber Probes
- Software CD
Specs
| Number of Channels | 16 |
| Max Sampling Rate | 200M/s@16CH |
| Fastest Digital Signal | 40MHz |
| Min Pulse Width | 12.5ns |
| Hardware Memory Size | 1Gbit |
| Hardware Sampling Depth (can be ensured) |
50M Sas |
| Max Compression Depth (can't be ensured) |
10G Sas |
| Threshold Voltages | -4V ~ +4V |
¶ Software/Manual
¶ How to use
Download and install the software
